Pan

Location Nevada, U.S.
Ownership 100% (Pending closing of Transaction Announced August 7, 2025)
Status Production
Metals Gold
Mineral Resources NI 43-101 Updated Technical Report on Resources and Reserves dated March 16, 2023
Mining & Processing Concept Open pit mining with heap leach processing

Highlights

2025 Production Guidance1 :  30,000 – 40,000 oz gold

2025 Costs Guidance1 :   $1,600 – $1,700 per oz AISC

Reserves :   247 Koz @ 0.34 g/t gold

M&I Resources2 :   288 Koz @ 0.36 g/t gold

Gold produced to date :   ~335,000 oz

1. Guidance issued by Calibre Mining on January 8, 2025.
2. M&I Mineral Resources are inclusive of reserves. See Technical References below



Overview

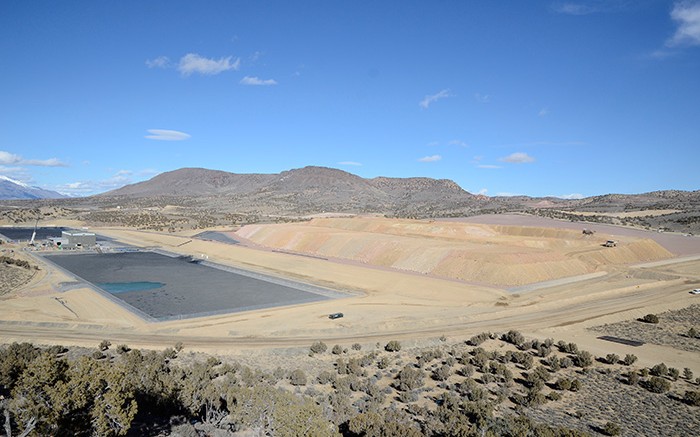

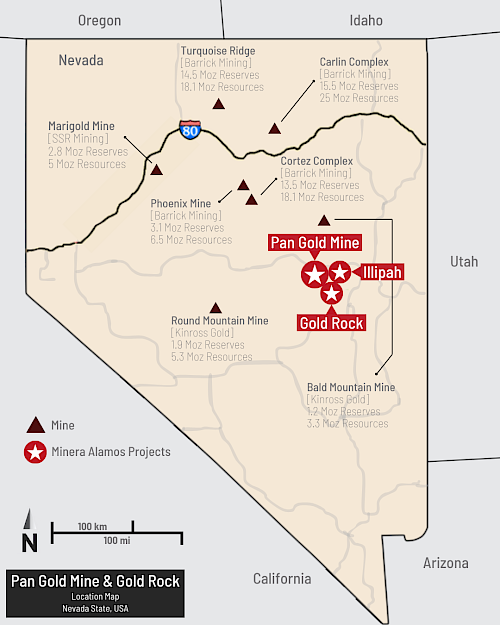

The Pan Mine is located approximately 28 km southeast of Eureka, Nevada, along the highly prospective Battle Mountain–Eureka gold trend. It is a Carlin-style gold deposit mined using conventional open-pit methods with gold recovered through heap leaching.

The Pan Gold deposit was discovered in 1978 and has been in continuous production since 2017. Leach pad expansions were completed in 2023 and 2024, adding additional stacking capacity. This enables the seamless processing of future deposits and supports continued mine life extension through exploration.

With numerous targets around the North and South pits remaining underexplored, Minera Alamos sees significant opportunity to ramp up both generative and near-mine exploration to drive future growth.

Operating Data

        2024 Actuals             2023 Actuals            2022 Actuals

Gold sold (oz) 35,228 41,399 42,117
Cash costs ($/oz) 1,473 1,429 1,405
AISC ($/oz) 1,683 1,479 1,421
Sustaining Capital ($m)            7 1 0.5



Technical References

CIM (2014) Definition Standards were followed for Mineral Reserves. Mineral Resources are inclusive of Mineral Reserves. Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability. Tonnage and grade measurements are in metric units. Contained gold is reported as troy ounces. Mineral resources do not include factors such as mining dilution or mining recovery. There is no certainty that the mine plans and economic models contained in any of the reports will be realized. Numbers may not add due to rounding.

Details of cut-off grades, bulk densities, mining widths, dilution, mining factors, and process recovery assumptions applied to Mineral Reserves and Mineral Resources are provided in the Technical Reports for each mine/project. Unless otherwise stated, Mineral Reserve and Mineral Resource information for each project is summarized, derived, or extracted from the following respective reports:

For the Pan Mine: “NI 43-101 Updated Technical Report on Resources and Reserves, Pan Gold Project, White Pine County, Nevada” dated March 16, 2023 with an effective date of December 31, 2022.

The technical reports have been filed with Canadian securities regulatory authorities and are available for review on SEDAR+ at www.sedarplus.ca
